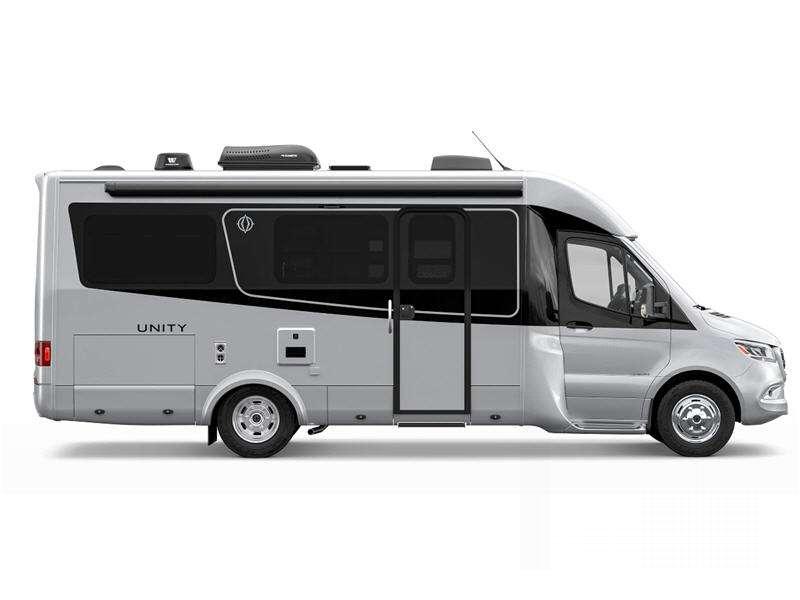

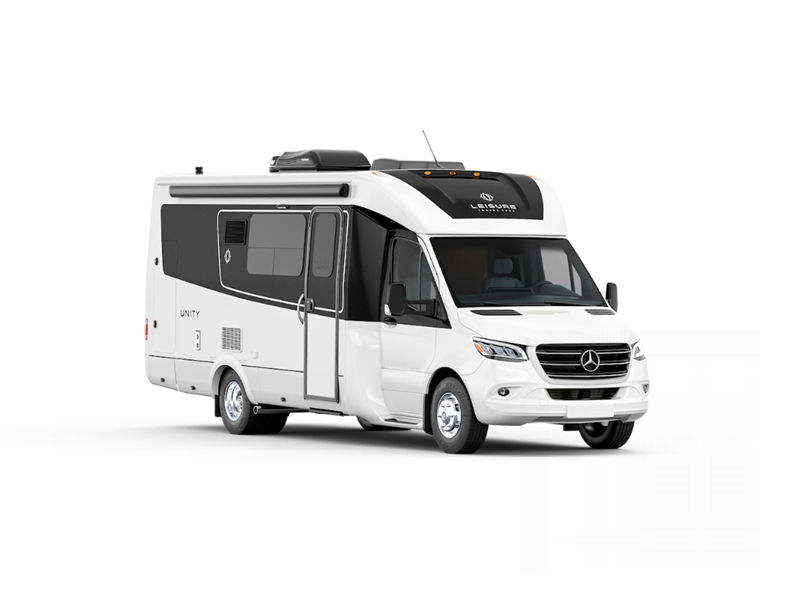

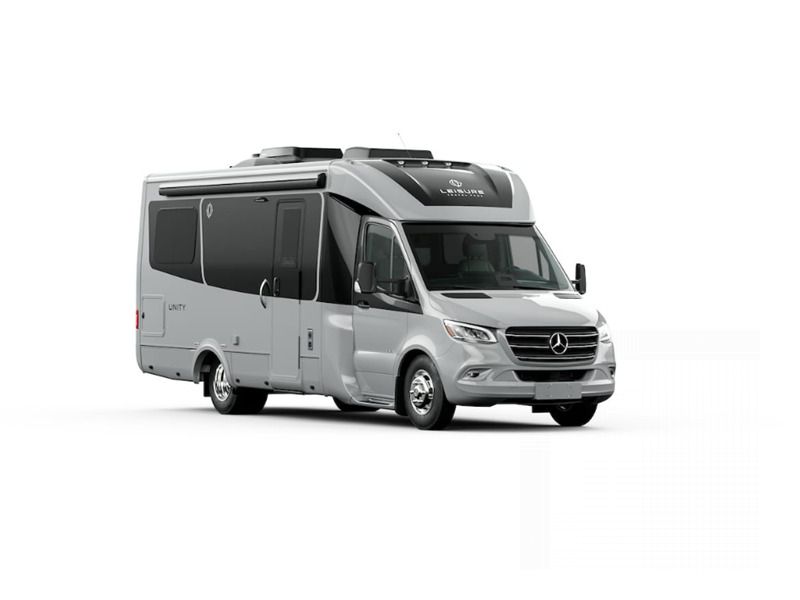

Leisure Travel Unity Motor Home Class B+ - Diesel

Previous
Next
1 of 37
The perfect union of quality and dependability has been created with the Unity Class B+ diesel motorhome from Leisure Travel Vans. This coach combines sleek European design and relentless comfort to bring you the perfect traveling home. Forget about the hassles of enlisting hotel reservations and hit the open road with an open schedule!

No matter where your adventures may lead, you can be certain that when you travel with a Unity motorhome, all the comforts of home are waiting for you right inside. You'll find plenty of storage space both inside and outside of the coach, so bring along everything you need to make your time away from home the most memorable.

For more space, more comfort, and more freedom to explore, choose the Unity Class B+ diesel motorhome by Leisure Travel Vans!
  • Unity U24MB

    Unity U24MB Floorplan Image

    Leisure Travel Unity Class B+ diesel motorhome U24MB highlights: Swivel Cab ... more about Unity U24MB

    Specifications

    Sleeps 2
    Slides 1
    Length 25 ft 1 in
    Ext Width 7 ft 11 in
    Ext Height 10 ft 6 in
    Int Height 6 ft 5 in
    Interior Color Fog, Pebble, Coal

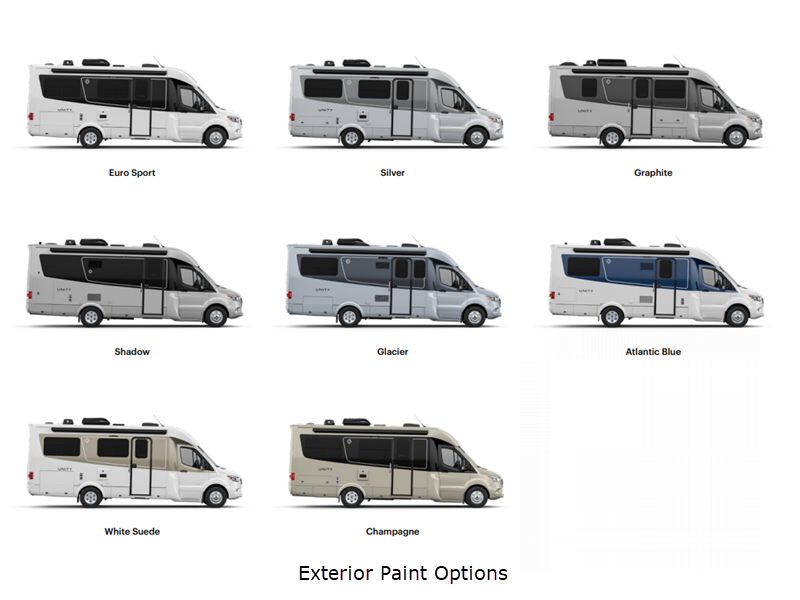

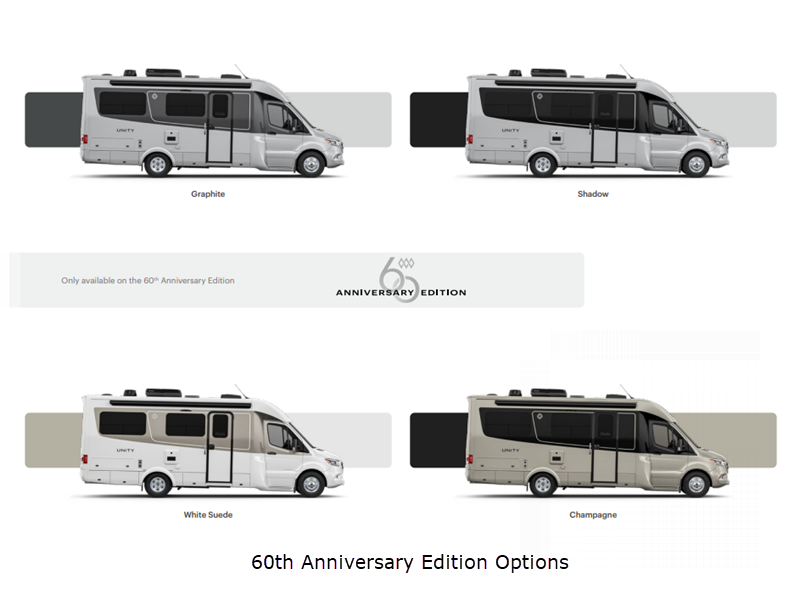

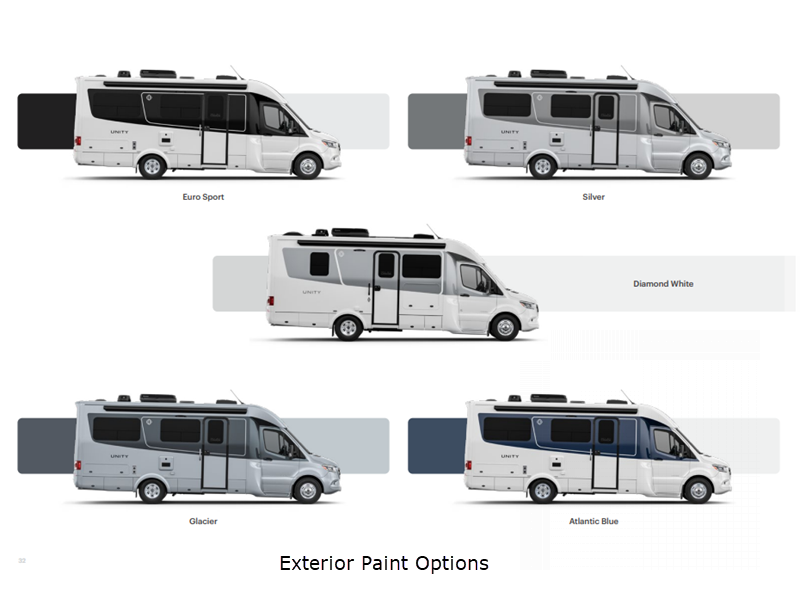

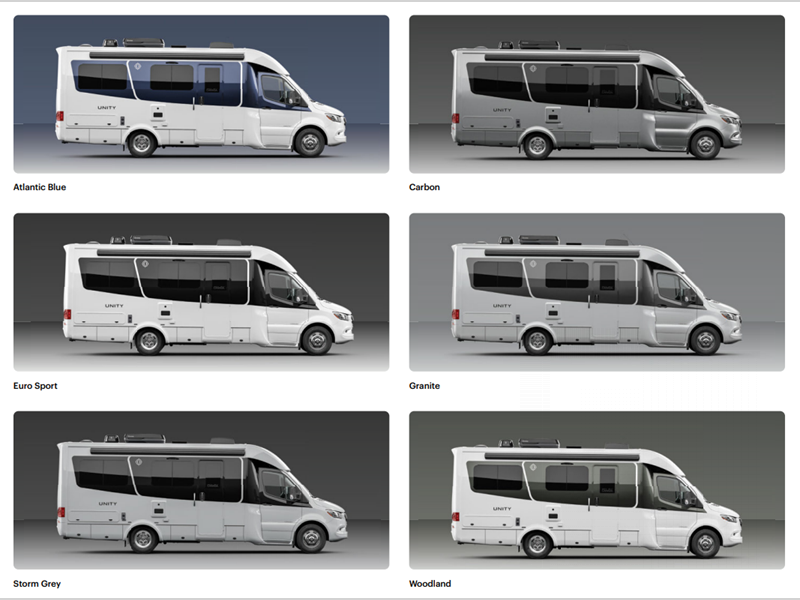

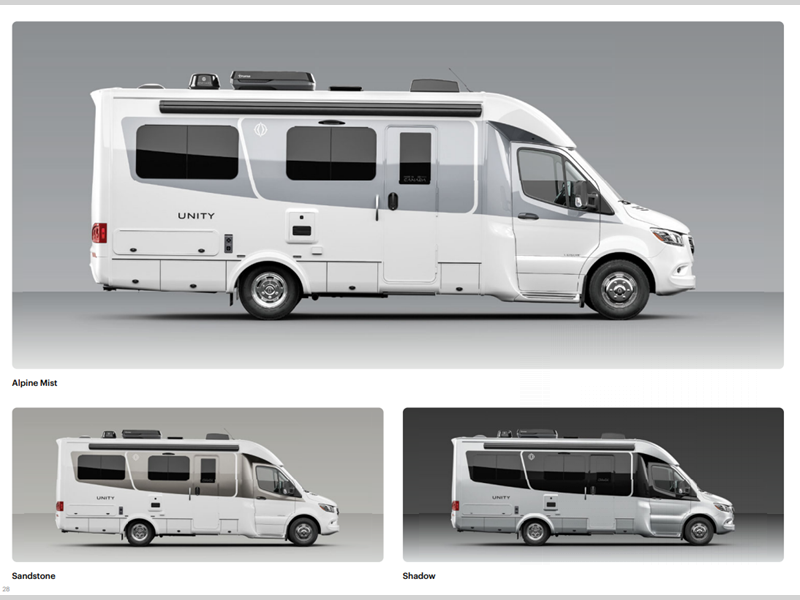

    Exterior Color White Suede, Silver, Graphite, Denim, Bordeaux, Euro Sport, Champagne
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 24 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 29 gals
    Furnace BTU 16000 btu
    Fuel Type Diesel
    Engine 3L V6
    Chassis Mercedes-Benz Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Torque 325 ft-lb
    Refrigerator Type Stainless Steel Double Door
    Refrigerator Size 6.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 15 lbs.
    Water Heater Type Truma AquaGo Comfort Plus
    AC BTU 15000 btu

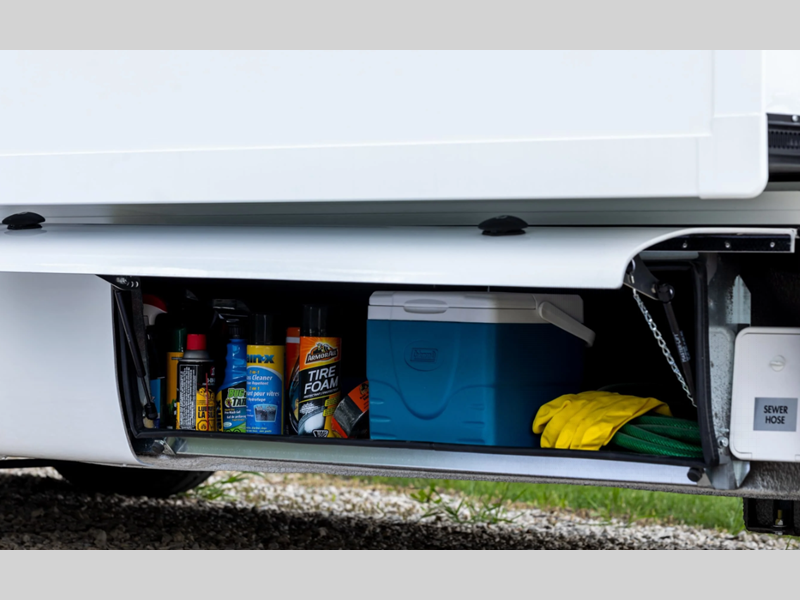

    Basement Storage 55 cu. ft.
    TV Info LR 39" Smart LED TV
    Awning Info Electric with LED Lights
    Shower Type Radius

    Similar Floorplans

  • Unity U24CB

    Unity U24CB Floorplan Image

    Leisure Travel Unity Class B+ diesel motorhome U24CB highlights: Single Slide ... more about Unity U24CB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 1 in
    Ext Width 7 ft 11 in
    Ext Height 10 ft 6 in
    Int Height 6 ft 5 in
    Interior Color Fog, Pebble, Coal
    Exterior Color White Suede, Silver, Graphite, Denim, Bordeaux, Euro Sport, Champagne
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 29 gals
    Furnace BTU 16000 btu
    Fuel Type Diesel
    Engine 3L V6
    Chassis Mercedes-Benz Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Available Beds Full
    Torque 325 ft-lb
    Refrigerator Type Stainless Steel Double Door
    Refrigerator Size 6.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 15 lbs.
    Water Heater Type Truma AquaGo Comfort Plus
    AC BTU 15000 btu
    Basement Storage 36 cu. ft.
    TV Info LR 28" Smart LED TV, BR 24" Smart LED TV
    Awning Info Electric with LED Lights
    Shower Type Standard

    Similar Floorplans

  • Unity U24FX

    Unity U24FX Floorplan Image

    Leisure Travel Unity Class B+ diesel motorhome U24FX highlights: Murphy Bed ... more about Unity U24FX

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Slides 1
    Length 25 ft 1 in
    Ext Width 7 ft 11 in
    Ext Height 10 ft 6 in
    Int Height 6 ft 5 in
    Interior Color Fog, Pebble, Coal
    Exterior Color White Suede, Silver, Graphite, Denim, Bordeaux, Euro Sport, Champagne
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 24 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 29 gals
    Furnace BTU 16000 btu
    Fuel Type Diesel
    Engine 3L V6
    Chassis Mercedes-Benz Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Torque 325 ft-lb
    Refrigerator Type Stainless Steel Double Door
    Refrigerator Size 6.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 15 lbs.
    Water Heater Type Truma AquaGo Comfort Plus
    AC BTU 15000 btu
    Basement Storage 34 cu. ft.
    TV Info LR 28" Smart LED TV, BR 24" Smart LED TV
    Awning Info Electric with LED Lights
    Shower Type Standard

    Similar Floorplans

  • Unity U24IB

    Unity U24IB Floorplan Image

    Leisure Travel Unity Class B+ diesel motorhome U24IB highlights: Walk-Through ... more about Unity U24IB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 25 ft 1 in
    Ext Width 7 ft 11 in
    Ext Height 10 ft 6 in
    Int Height 6 ft 5 in
    Interior Color Fog, Pebble, Coal
    Exterior Color White Suede, Silver, Graphite, Denim, Bordeaux, Euro Sport, Champagne
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 29 gals
    Furnace BTU 16000 btu
    Fuel Type Diesel
    Engine 3L V6
    Chassis Mercedes-Benz Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Available Beds Full
    Torque 325 ft-lb
    Refrigerator Type Stainless Steel Double Door
    Refrigerator Size 6.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 15 lbs.
    Water Heater Type Truma AquaGo Comfort Plus
    AC BTU 15000 btu
    Basement Storage 63 cu. ft.
    TV Info LR 28" Smart LED TV, BR 24" Smart LED TV
    Awning Info Electric with LED Lights
    Shower Type Standard

    Similar Floorplans

  • Unity U24TB

    Unity U24TB Floorplan Image

    Leisure Travel Unity Class B+ diesel motorhome U24TB highlights: Convertible ... more about Unity U24TB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 25 ft 1 in
    Ext Width 7 ft 11 in
    Ext Height 10 ft 6 in
    Int Height 6 ft 5 in
    Interior Color Fog, Pebble, Coal
    Exterior Color White Suede, Silver, Graphite, Denim, Bordeaux, Euro Sport, Champagne
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 29 gals
    Furnace BTU 16000 btu
    Fuel Type Diesel
    Engine 3L V6
    Chassis Mercedes-Benz Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Available Beds Two Twin
    Torque 325 ft-lb
    Refrigerator Type Stainless Steel Double Door
    Refrigerator Size 6.7 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 15 lbs.
    Water Heater Type Truma AquaGo Comfort Plus
    AC BTU 15000 btu
    Basement Storage 54 cu. ft.
    TV Info LR 28" Smart LED TV, BR 24" Smart LED TV
    Awning Info Electric with LED Lights
    Shower Type Standard

    Similar Floorplans

Unity Features:

Standard Features (2019)



Chassis & Suspension

  • Alternator - 220A
  • Auto Lights w/ High Beam Assist
  • Bi-Xenon Headlamps & Multi-Function Steering Wheel
  • Chassis - Mercedes-Benz Sprinter 3500
  • Collision Prevention Assist
  • Concealed Fuel Filler
  • Crosswind Assist
  • Dual Rear Wheels
  • Fog Lamps
  • Fuel - Diesel
  • Lane Keeping Assist
  • Mercedes-Benz Chrome Grille
  • Rain Sensing Wipers
  • Rear Hitch Receiver w/ Wiring - 500 / 5000 Lb (Brake/Turn/Tail Lights)
  • Wheel Simulators

Drivers Area Conveniences

  • Air Conditioning - Chassis
  • Cruise Control and Tilt/Telescopic Steering Wheel
  • Decorative Dash Inserts
  • Driver Side & Passenger Side Exterior Courtesy Light
  • Mirrors - Heated Remote Exterior w/ Convex
  • Mirror - On Passenger Side Sun Visor
  • Power Windows and Door Locks w/ Keyless Entry
  • Radio - In-Dash AM/FM/Navigation/Bluetooth/Rear View Camera
  • Removable Carpeted Floor Mat w/ Rubber Backing

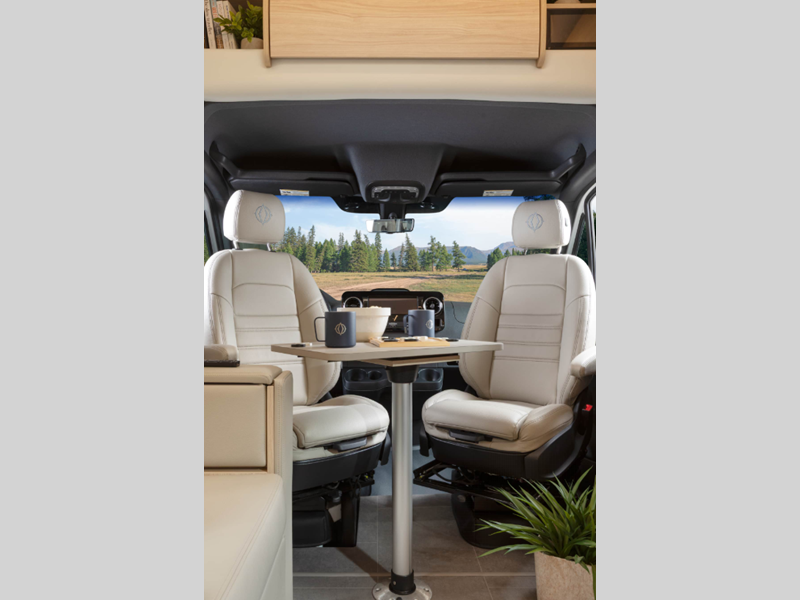

  • Seats - Genuine Mercedes-Benz DS/PS Swivels
  • Seats - Ultraleather™

Vehicular

  • 2-Year Roadside Assistance
  • Chassis Battery Disconnect
  • Undercoating - Chassis

Construction

  • Floor - Steel Framed Vacuum Bonded Insulated
  • Roof - Domed Vacuum Bonded Aluminum Framed Insulated FRP Flexroof
  • Sidewalls - Contoured Vacuum Bonded Aluminum Framed Insulated with Gel Coat Fiberglass
  • Slideout (N/A U24IB, U24TB)
  • Windows - Frameless Tinted - Awning Styles

Exterior

  • Assist Handle - Lit
  • Baggage Doors - Fiberglass with Top Continuous Hinge c/w Latches and Gas Struts
  • Entry Door - Contoured with Screen Door & Window
  • Entry Step - Retractable Power
  • Integrated Running Boards & Flares - Fiberglass
  • Large Rear Pass-Through Storage Compartment (U24IB, U24TB Only)
  • Paint - Full Body w/ Clear Coat w/ Color Matched Front Bumper
  • Patio Light - LED w/ Interior Wall Switch
  • Water Pump Switch in Utility Center

Interior

  • Assist Handle - Ultraleather Wrapped w/ Light
  • Cabinets - Solid Wood w/ Curved Soft Close Upper Cabinet Doors
  • Drawers - Full Extension Ball Bearing Tracks - Self Locking
  • Flooring - Tile Look Vinyl Flooring Throughout
  • Lighting - Dimmable LED Lighting w/ LED Under Cabinet and Accent Lights
  • Shades - Day/Night Roller w/ Ultraleather™ Valances
  • Seatbelts
  • Skylight - Opening Skylight w/ Screen and Privacy Shade

Furniture

  • Bed - 52" x 76" w/ Residential Quality Mattress (U24CB)
  • Bed - 58" x 74" w/ Residential Quality Mattress (U24IB)

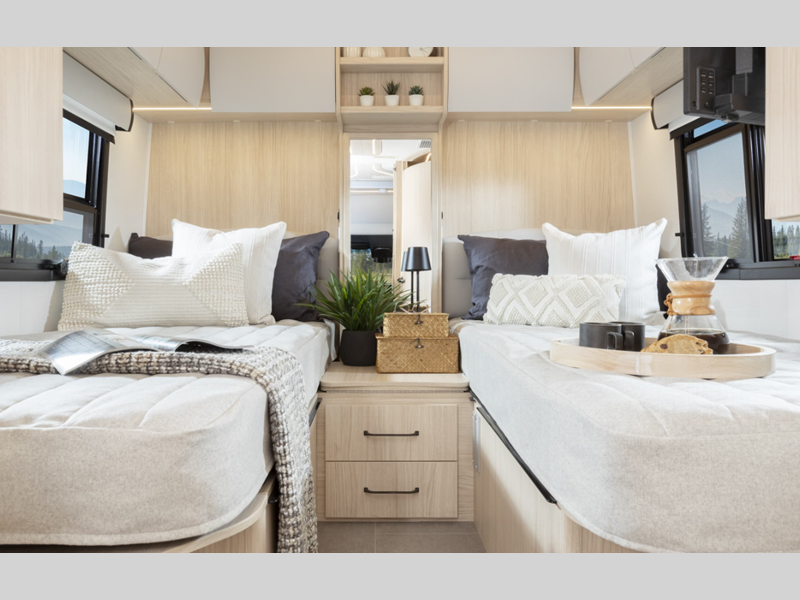

  • Bed - 34" x 76" (2) or 88" x 76" w/ Residential Quality Mattress (U24TB)
  • Booth Dinette w/ Easy Lift Dinette Table (U24CB)

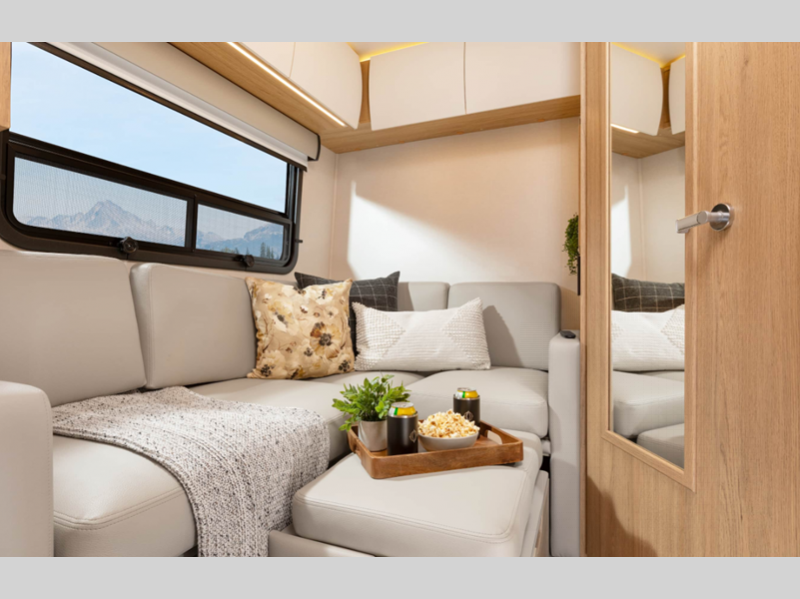

  • Leisure Lounge Express - Ultraleather w/ Folding Table (U24IB, U24TB)
  • Leisure Lounge w/ Murphy Bed (68” x 76") and Flip-Down Table (U24FX, U24MB)
  • Rear Sofa - Fabric with Hidden Ottoman/Table (U24FX)

Galley

  • Accessory Channel (N/A U24IB, U24TB)
  • Backsplash - Stainless Steel
  • Cooktop - LP - European Flush Mount with Hinged Glass Cover
  • Countertop - Corian® Solid Surface
  • Flip Up Counter Extension (U24IB, U24TB, U24MB)
  • Garbage Can - Recessed w/ Flush Lid
  • Oven - Stainless Steel Convection Microwave
  • Pantry - Large Pull Out
  • Refrigerator - 2 Door - 3 way - 6.7 Cu. Ft. Fridge/Freezer - Stainless Steel Look Door
  • Sink - Large Undermount Stainless Steel w/ Cover

Lavatory

  • Accessory Channel (N/A U24CB)
  • Fan - Power Bath Vent
  • Medicine Cabinet

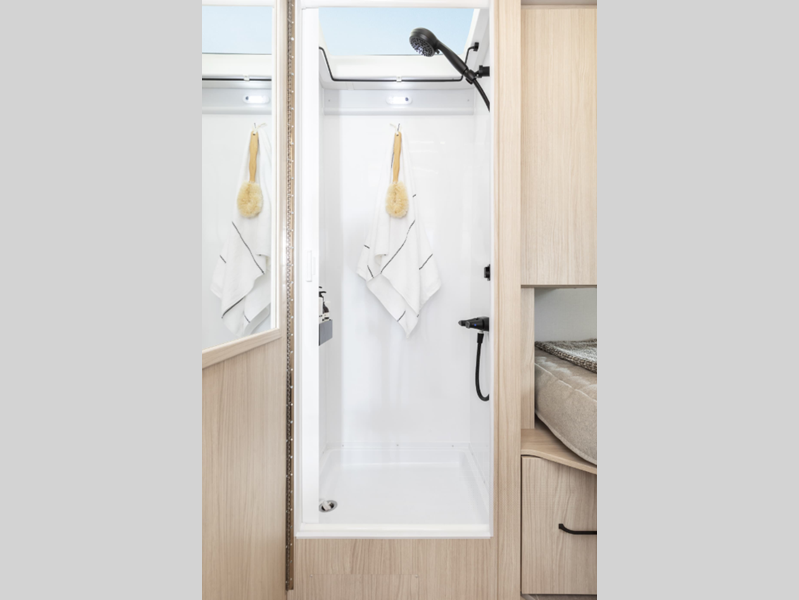

  • Shower - with Grab Handle, c/w Door & Skylight
  • Sink - Stainless Steel (N/A U24MB)
  • Sink - Solid Surface Seamless (U24MB)
  • Toilet - China - Marine Grade with Macerator (U24IB, U24TB)
  • Toilet - China - Foot Flush w/ Sprayer (U24FX, U24CB, U24MB)
  • Water Pump Switch on Vanity

Entertainment

  • Satellite Dish Pre-Wire
  • Stereo - DVD/CD/Bluetooth/USB w/ HDMI
  • TV - 24" Smart LED in Bedroom (N/A U24MB)
  • TV - 28" Smart LED (N/A U24MB)
  • TV - 39" Smart LED w/ TV Lift (U24MB)
  • USB Outlet - In Bed and Living Areas
  • Wi-Fi Extender - Winegard ConnecT 2.0 Wi-Fi + 4G LTE + Integrated TV and Radio Antenna

Heating, Ventilating & Air Conditioning

  • AC - Low Profile 15,000 BTU Ducted c/w Heat Pump
  • Fan - Non Reversible Thermal Controlled in Galley
  • Furnace - Ducted 16,000 BTU

Electrical

  • Battery - 6V Dual Coach Batteries
  • Converter - Power Converter c/w Battery Charger
  • GFI Receptacle - 110V - Patio, Galley, Lavatory
  • Inverter - 1000W Pure Sine c/w Battery Charger
  • Switch - Battery Disconnect - Manual (Coach Batteries)

Plumbing & LP Systems

  • Black Tank Flush
  • Exterior Shower
  • LP Tank w/ Electric Shut Off
  • Monitor Panel - Tank, LP, and Battery Levels
  • Pick Up Kit - Antifreeze
  • Quick Connect BBQ LP Outlet
  • Shower Water Shut-Off Valve
  • Water Filter System
  • Water Heater - Truma AquaGo Comfort Plus

Awning Packages

  • Power Legless Box Awning w/ Wind-Sensor Auto Retract & Integrated LED Lights
  • Slide Topper Awning (U24FX, U24CB, U24MB)

Certification

  • Canadian Certification - Mandatory for Canada (Optional)
  • RVIA Certification

Optional Equipment

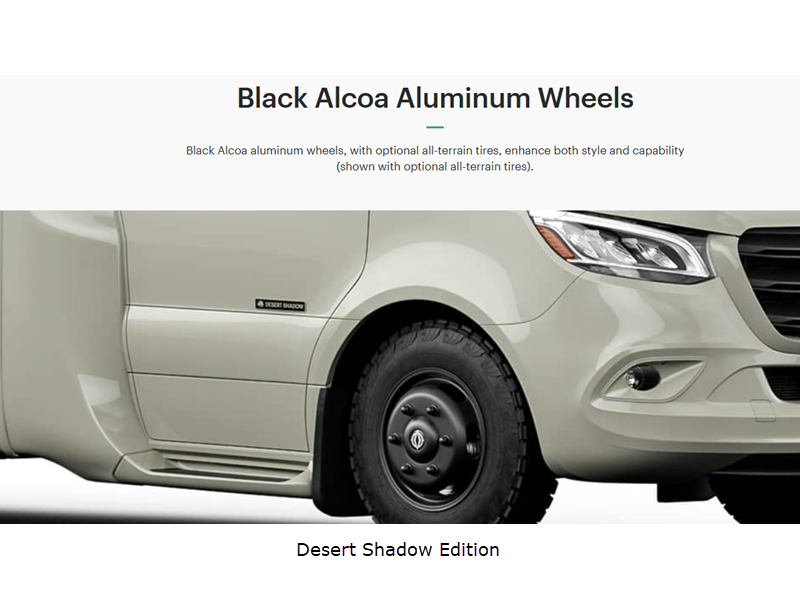

  • Alcoa Dura-Bright® Aluminum Wheels (4 Wheels Dura-Bright, All 6 Aluminum)
  • Exterior Ladder
  • Fan Upgrade - w/ Rain Sensor in Galley & Lavatory
  • Generator - 3.2 KW Onan Diesel w/ Auto Changeover Switch
  • Generator - 3.6 KW Onan LP w/ Auto Changeover Switch
  • Glamour Décor Package - Fenix NTM® matte upper cabinets - Bianco White or Grigio Grey
  • Integrated Cab Privacy Blinds
  • Jacks - Stabilizer Electric (2 Only)
  • Jacks - 4-Point Hydraulic Self Leveling
  • Leisure Lounge Plus w/ Murphy Bed (68" x 76") & 2 Rotating Power Recliners (U24MB)
  • Macerator - Termination w/ Manual Disconnect
  • Remote Keyless Entry - Coach Entry Door
  • Removable Front Table between Captain Chairs (N/A U24IB, U24TB)
  • Safe (6" x 10.8" x 7.3")
  • Satellite Dish - Winegard Road Trip T4 (DirectSD, DishHD, BellHD)
  • Solar Panel - 200W
  • Solar Panel - 400W
  • Surge Protector

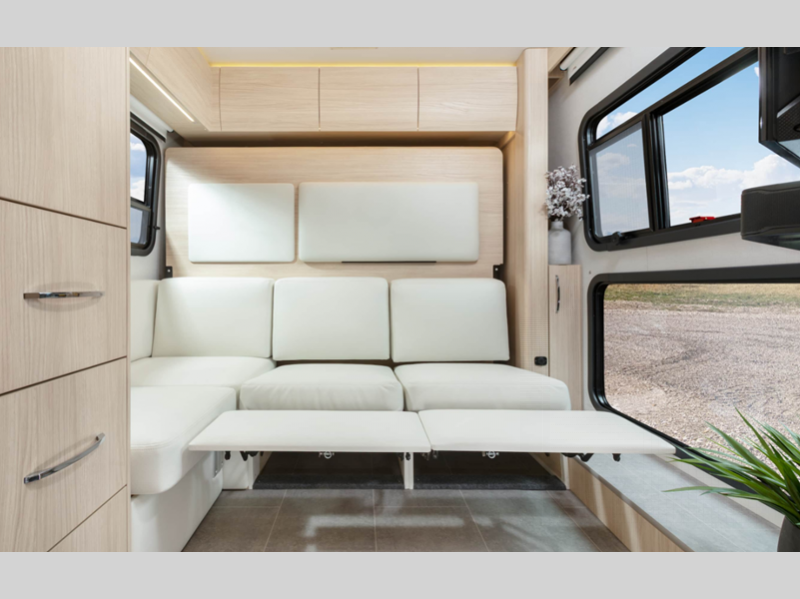

  • U-Lounge Dinette (U24CB)
  • Ultraleather Rear Sofa (U24FX)

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

Leisure Travel Vans has over 50 years of history in the RV industry and is committed to customer service: before, during and after each purchase.  It is one of the first North American RV manufacturer to produce a Class B motorhome on the Sprinter Chassis, produce a fiberglass moulded wide body (the Serenity), and the first to produce a Murphy bed in a B+.  Now that says innovation, and that is what makes them the Class B leader!

With a dedicated and loyal staff that is proud to provide only quality components that will meet or exceed their customers expectations. They are driven for excellence and committed to going beyond the norm to bring you the best Class B for years of travel enjoyment.
