Coachmen RV Catalina Trail Blazer Toy Hauler Travel Trailer RVs For Sale

Previous
Next
1 of 36

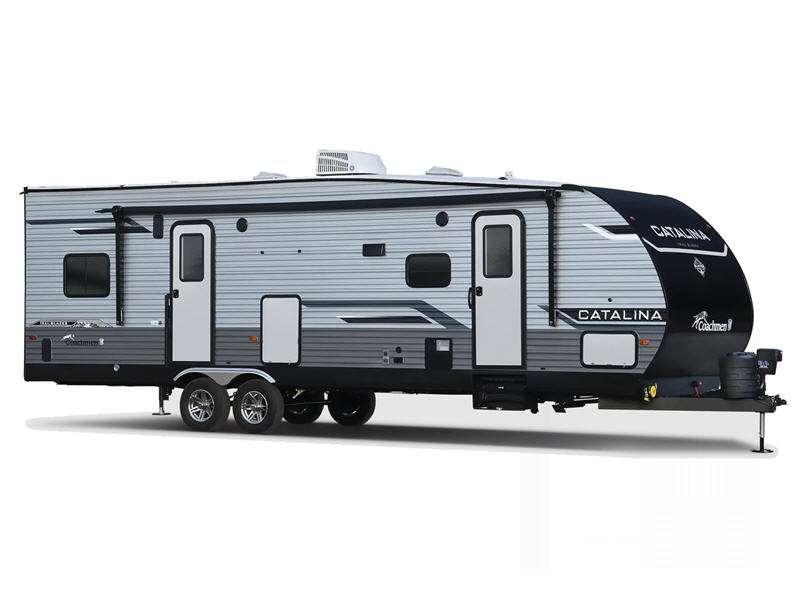

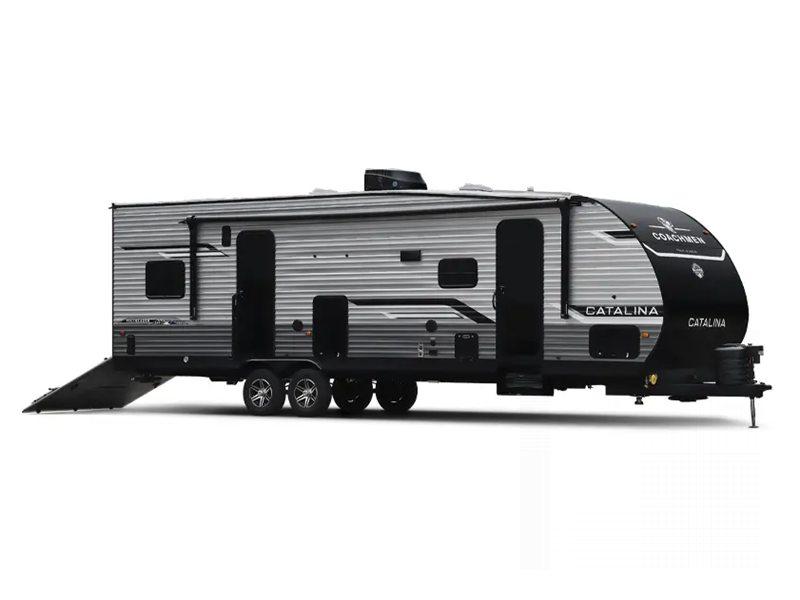

The versatile and functional Catalina Trail Blazer toy hauler from Coachmen RV is going to be your new best friend! With the luxury and amenities found in a typical travel trailer combined with the convenience of a toy hauler, the Catalina Trail Blazer will fit into many different RV lifestyles.



The construction is solid and reliable with its cambered structural steel I-beam frame, full-length fame E-coated outriggers, and seamless TPO roof membrane. The Dexter EZ Lube axles with leaf spring suspension will provide a smooth ride, and the self-adjusting brakes will add to the integrity of your trailer. You can live life freely with exceptional living quarters on the interior, and the full kitchen, private bedroom, and complete bathroom are going to give you all of the amenities needed to keep your family happy. In order to make your trailer even more of a catch, you can choose to turn the ramp door into an optional party deck, and that will give you even more space to have fun all weekend long.



Packed with amenities and functionality, the Coachmen Catalina Trail Blazer toy hauler won't let you down!

  • Catalina Trail Blazer 26TH

    Catalina Trail Blazer 26TH Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Trail Blazer toy hauler 26TH highlights: Fold-Down Sofas ... more about Catalina Trail Blazer 26TH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Length 29 ft 10 in
    Ext Width 8 ft
    Ext Height 10 ft 7 in
    Int Height 6 ft 9 in
    Interior Color Java, Biscotti
    Hitch Weight 957 lbs
    Gross Weight 7900 lbs
    Dry Weight 5486 lbs
    Cargo Weight 2414 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Gas/Electric RV
    Refrigerator Size 7 cu ft
    Cooktop Burners 3
    Shower Size 34" x 34"
    Number of Awnings 1
    Garage Size 11 ft 6 in
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    TV Info LR 32" Flat Screen TV
    Awning Info 15' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Trail Blazer 28THS

    Catalina Trail Blazer 28THS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Trail Blazer toy hauler 28THS highlights: King-Size Bed 15' ... more about Catalina Trail Blazer 28THS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 33 ft 8 in
    Ext Width 8 ft
    Ext Height 11 ft 9 in
    Int Height 7 ft 6 in
    Interior Color Java, Biscotti
    Hitch Weight 1126 lbs
    Gross Weight 10500 lbs
    Dry Weight 7226 lbs
    Cargo Weight 3274 lbs
    Fresh Water Capacity 98 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type Gas/Electric RV
    Refrigerator Size 7 cu ft
    Cooktop Burners 3
    Shower Size 36" x 30"
    Number of Awnings 1
    Garage Size 15 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    TV Info LR 39" Flat Screen TV
    Awning Info 18' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Trail Blazer 29THS

    Catalina Trail Blazer 29THS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Trail Blazer toy hauler 29THS highlights: Dual Entry Front ... more about Catalina Trail Blazer 29THS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 35 ft 6 in
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Java, Biscotti
    Hitch Weight 1232 lbs
    Gross Weight 9800 lbs
    Dry Weight 7230 lbs
    Cargo Weight 2570 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Gas/Electric RV
    Refrigerator Size 7 cu ft
    Cooktop Burners 3
    Shower Size 24" x 40"
    Number of Awnings 1
    Garage Size 11 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    TV Info LR 39" Flat Screen TV
    Awning Info 15' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Trail Blazer 30THS

    Catalina Trail Blazer 30THS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Trail Blazer toy hauler 30THS highlights: Master Suite 16' ... more about Catalina Trail Blazer 30THS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 35 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 9 in
    Int Height 6 ft 9 in
    Interior Color Java, Biscotti
    Hitch Weight 1382 lbs
    Gross Weight 10500 lbs
    Dry Weight 7600 lbs
    Cargo Weight 2900 lbs
    Fresh Water Capacity 98 gals
    Grey Water Capacity 70 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Gas/Electric RV
    Refrigerator Size 7 cu ft
    Cooktop Burners 3
    Shower Size 34" x 34"
    Number of Awnings 1
    Garage Size 16 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    TV Info LR 39" Flat Screen TV
    Awning Info 18' Electric with LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

Catalina Trail Blazer Features:

Standard Features (2021)



Construction & Equipment Features

  • Cambered Structural Steel I-Beam Frame
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2" x 3" Floor Joists on Approximately 12" Centers
  • 4" Floor To Frame Steel Lag Bolts
  • 3/8" Fully Decked Walk-On Roof (Tandem Axle Models)
  • Seamless TPO Roof Membrane with 12 Year Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 81" Interior Height (90” 28THS)
  • Easy-Trac Rack and Pinion Slide-Out(s)
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 30,000 BTU Auto-Ignition Furnace w/Wall Thermostat
  • 13,500 BTU Ducted A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Converter
  • Aluminum Wheels

Exterior Features

  • Power Electric Awning w / 12V Power Channel and LED Light and Directional Spotlight Attachment
  • Enclosed, Fully Sealed Underbelly
  • Power Tongue Jack
  • Black Tank Flush
  • Outside Utility Shower w/ Hands Free Holder
  • 20lb. LP Tank (2) Tandem Axle Models, (1) Single Axle Models
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Four Stabilizer Jacks
  • G20 Tinted Windows
  • Two Marine Grade Exterior Speakers w/LED Lighting
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Rain Gutters with Drip Spouts
  • Radius Entry Steps
  • XL Swing Arm Grab Handle
  • Rear View Camera Prep
  • 15' Toy Loc Cable
  • Lockable Ramp Door Latches
  • Rear LED Loading Lights
  • Pets - "Leash Link" Quick Hookup D-Ring

Safety Features

  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door

Interior Features

  • Drop Edge Thermofoil Seamless Countertops
  • Kitchen Power Tower w/ 2 USB Ports & 2 110 Outlets
  • Bluetooth Stereo and DVD Player w/CD,MP3, USB and AM/FM Radio
  • 39" Flat Screen TV (32” 26TH)
  • Swing Arm TV Bracket
  • In-Wall Mounted Interior Speakers
  • 7 Cu. Ft. Gas/Electric RV Refrigerator
  • Deep Basin Under-mount Farm Style Sink
  • Residential Kitchen Faucet w/Pull Down Sprayer
  • Flush Thermofoil Kitchen Sink Covers (2)
  • Full Length Kitchen Drawer Guides
  • Salvaged Light Oak Cabinets
  • All-In-One Monitor Panel System
  • 3 Burner Range w/Flush Glass Top & Blue LED Accent Lights
  • Slim Line Furrion Range Hood
  • Silverware Kitchen Drawer
  • Mosaic Glass Tile Backsplash
  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • Residential In-Floor Ducted Heat
  • LED Interior Lighting
  • Decorative Sofa Throw Pillows
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Pedestal Thermofoil Dinette Table
  • Portable Thermofoil Dinette Table
  • Dinette Storage Under Benches
  • Easy Access Booth Dinette Storage Doors
  • Marine Toilet with Foot Flush

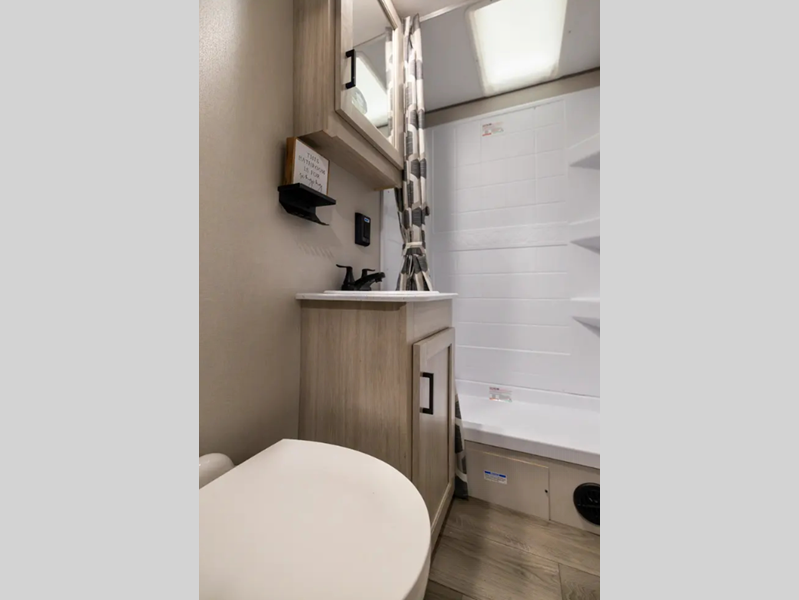

  • ABS Tub/Shower Surround w/Shelves
  • Skylight Above Tub/Shower
  • Power Vent Fan in Bathroom

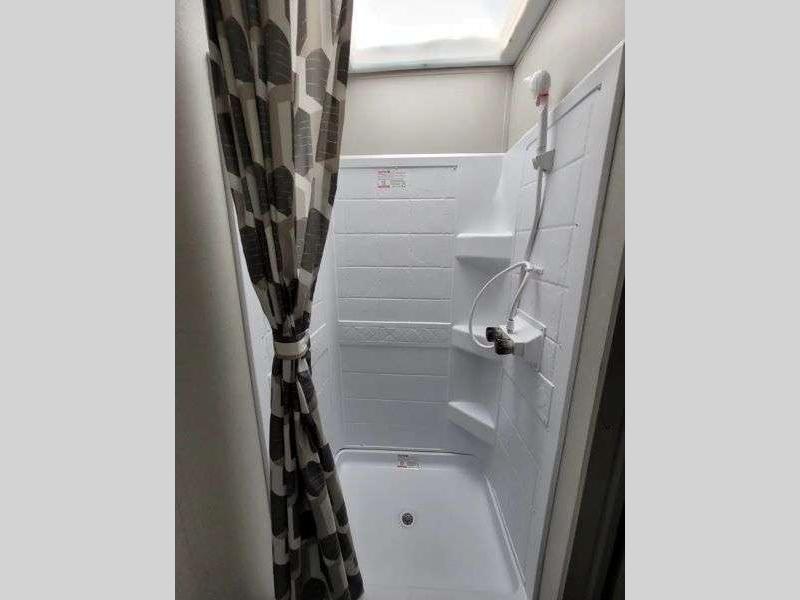

  • Glass Step-In Shower w/ABS Surround (Per Floorplan)
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • Solid Master Bedroom Door(s) (Per Floorplan)
  • Full Length Night Stands with Recepts
  • Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)
  • Master Bedroom Overhead Cabinets
  • Underbed Storage w/Separation from Outside Front Storage
  • Quilted Designer Bedspread
  • 500LB. Tie Down - 10-12 Ties per Floorplan

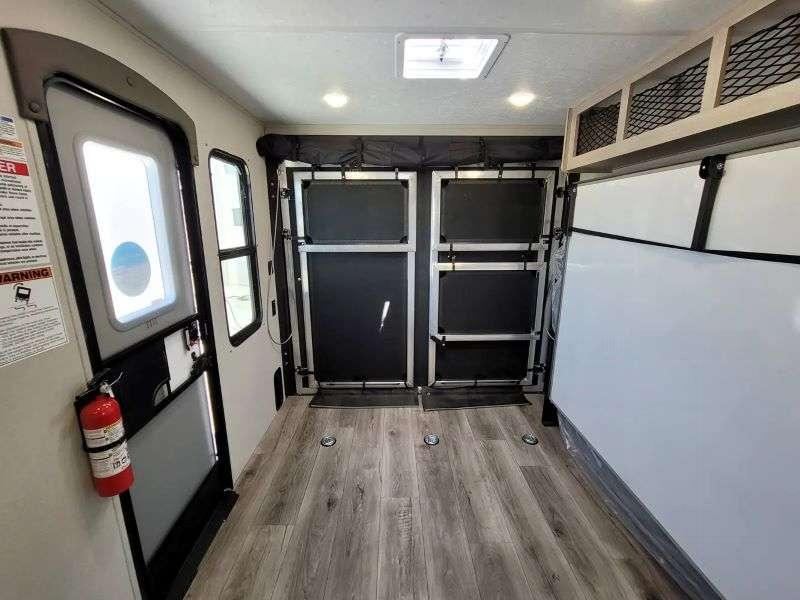

  • Rear Loading Cargo Door w/3000lb. Capacity
  • Black Out Screen Wall w/Zip Walk-Thru & Windows
  • Rock Run Reinforced Interior Drive On Wheel Wells (19TH & 26TH Only)
  • King Bed (28THS)
  • Reversible Refrigerator Front Panels (Black or Salvaged Light Oak)

Options

  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
  • 50 Amp Service w/2nd 13.5 A/C (28THS, 29THS)
  • 50 Amp Service w/2nd A/C Prep (28THS, 29THS)
  • Two 30lb. LP Bottles w/Cover
  • Tri-Fold Hide A Bed Sofa (29THS)

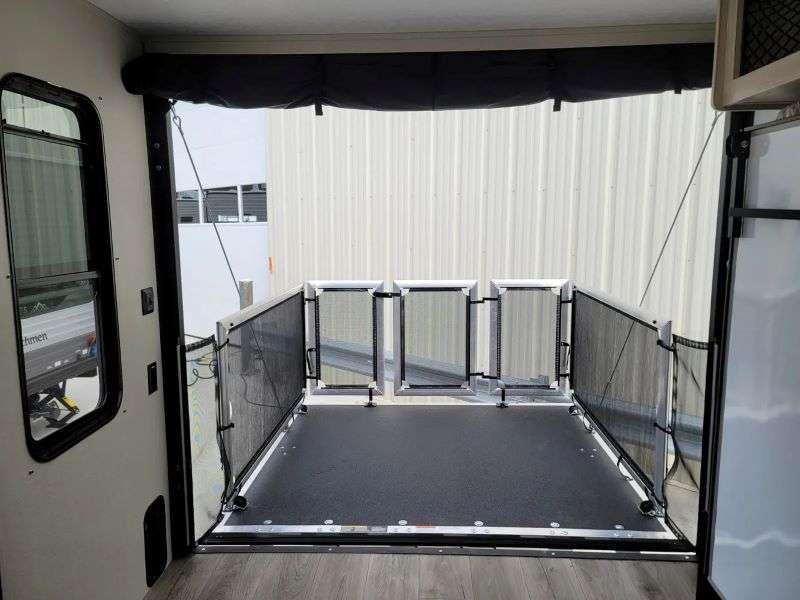

  • Ramp Door Patio System
  • Fuel Station w/ 30 Gallon Fuel Tank (28THS Only)
  • CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
