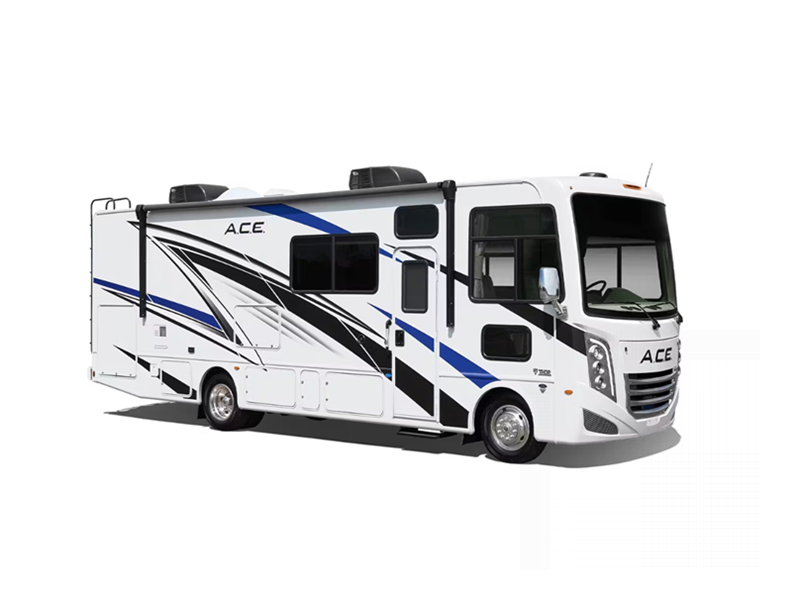

Thor Motor Coach ACE Motor Home Class A

Previous
Next
1 of 21
The A.C.E. is the evolution of what customers want: the perfect combination of the Class A and Class C motorhome. From the exterior graphics to the interior details, you'll be pleasantly surprised with this Thor Motor Coach creation. Built on a Ford F-53 chassis and powered by a 6.8L Triton V10 gas engine, the A.C.E. brings you a smooth ride with plenty of at-home features and creature comforts to make any trip feel as though you never left home.

Owners will love the elegant fabric collection, the interior decor choices, and the HD-MAX exterior paint colors. Pet lovers and their pets will appreciate the pull-out Kibble Station with an FDA-approved pet bowl liner, the Bird's Eye Window (pet window), and the Pet-Link multi-purpose tie-down.

Find out for yourself why so many people call the A.C.E. Class A gas motorhome by Thor Motor Coach their home!
  • Specifications

    Sleeps 7
    Slides 2
    Length 28 ft 9 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights

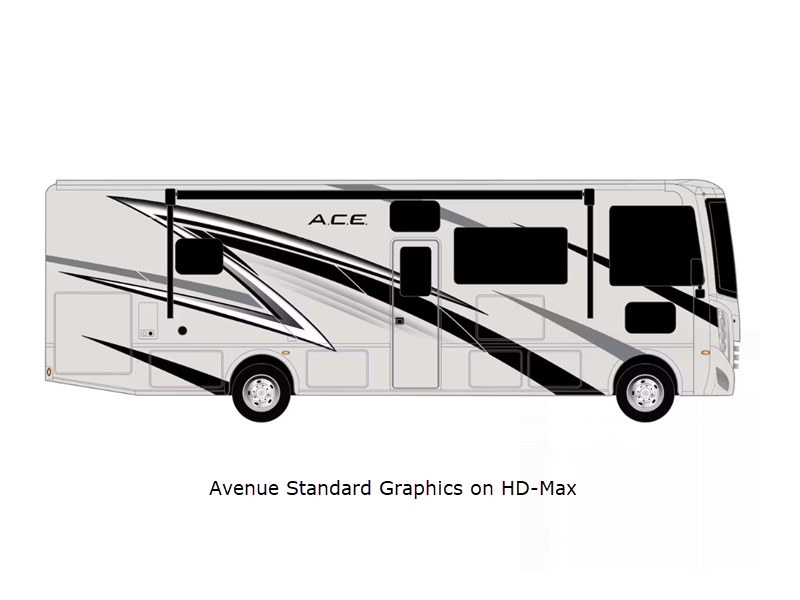

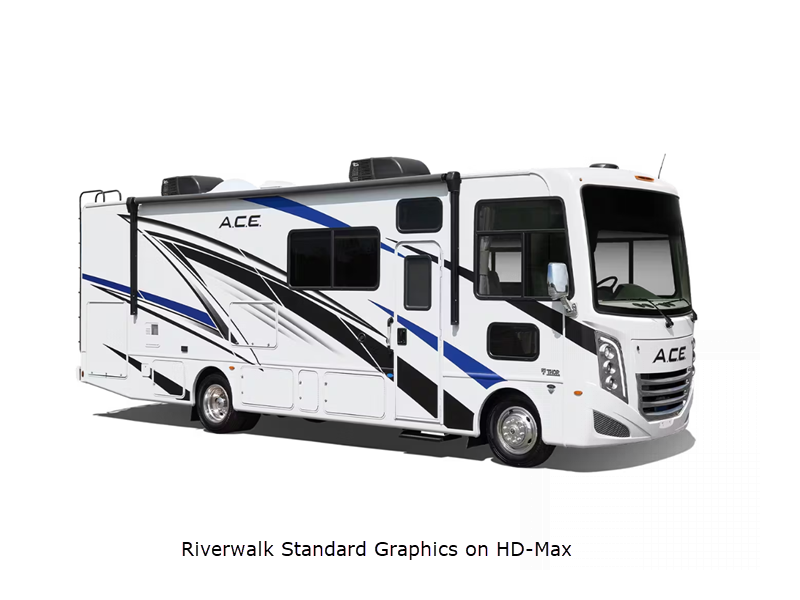

    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 16000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 73 gals
    Black Water Capacity 40 gals
    Tire Size 19.5
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 178 in
    Number Of Bunks 1
    Available Beds King
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 56 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 19' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 30.3

    ACE 30.3 Floorplan Image

    Thor Motor Coach A.C.E. Class A gas motorhome 30.3 highlights: Walk-Through Bath ... more about ACE 30.3

    Specifications

    Sleeps 7
    Slides 2
    Length 31 ft
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 19.5
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 72 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 19' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 29.3

    ACE 29.3 Floorplan Image

    Thor Motor Coach A.C.E. Class A gas motorhome 29.3 highlights: Full-Wall Slide ... more about ACE 29.3

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 29 ft 9 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 47 gals
    Black Water Capacity 26 gals
    Tire Size 19.5
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 48 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 18' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 30.2

    ACE 30.2 Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach A.C.E. Class A gas motorhome 30.2 highlights: Full-Wall Slide ... more about ACE 30.2

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 28 gals
    Tire Size 19.5
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 107 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Bunk Beds (2) 15.5" LED TV's, Ext. 32" LED TV
    Awning Info 19' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 30.4

    ACE 30.4 Floorplan Image

    Thor Motor Coach A.C.E. Class A gas motorhome 30.4 highlights: Full-Wall Slide ... more about ACE 30.4

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 47 gals
    Black Water Capacity 40 gals
    Tire Size 19.5
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 208 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 130 cu. ft.
    TV Info LR 32" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 32.1

    ACE 32.1 Floorplan Image

    Thor Motor Coach A.C.E. Class A gas motorhome 32.1 highlights: Full-Wall Slide ... more about ACE 32.1

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 2
    Length 33 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 20500 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 67 gals
    Tire Size 19.5
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 208 in
    Number Of Bunks 1
    Available Beds King
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 10 gal
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 83 cu. ft.
    TV Info LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 14' Electric with LED Lights
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • ACE 33.1

    ACE 33.1 Floorplan Image

    Thor Motor Coach A.C.E. Class A gas motorhome 33.1 highlights: 68" Booth Dinette ... more about ACE 33.1

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 2
    Length 34 ft 8 in
    Ext Width 8 ft 3 in
    Ext Height 12 ft 2 in
    Int Height 7 ft
    Interior Color French Quarters, Arctic Frost II, Island Nights
    Exterior Color Brandywine HD-MAX, Vineyard HD-MAX
    Hitch Weight 8000 lbs
    Gross Weight 20500 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 19.5
    Furnace BTU 35000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gas
    Engine 6.8L Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 228 in
    Number Of Bunks 1
    Available Beds King
    Torque 460 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30"x 36"
    Number of Awnings 1
    LP Tank Capacity 88
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 126 cu. ft.
    TV Info LR 50" LED TV, LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV
    Awning Info 19' Electric with LED Lights
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

ACE Features:

Standard Features



Construction & Exterior

  • Ford® F-53 Chassis
  • 8,000-lb. Trailer Hitch with 7-pin Round Connector
  • Automatic Leveling Jacks with Touchpad Controls
  • Welded Tubular Steel Floor
  • Welded Tubular Aluminum Roof and Sidewall Cage Construction
  • Vacu-Bond Laminated Roof, Walls & Floor with Block Foam Insulation
  • One-Piece Fiberglass Front Cap
  • One-Piece Windshield
  • HD-MAX® Exterior with Graphics Package
  • Rotocast Storage Compartments
  • Exterior MEGA-Storage™ Compartment (30.4)
  • Premium One-Piece TPO Roof
  • Power Patio Awning with Integrated LED Lighting
  • Slideout Room Topper Awning(s)
  • Roof Ladder
  • Side-Hinged Flush Mount Radius Compartment Doors
  • Motorhome Mudroom™ Compartment
  • Electric Entry Step
  • Entry Door with Deadbolt Lock
  • Exterior Grab Bar Handle
  • Frameless Windows
  • Pet-Link™ Multi-Purpose Tie-Down

Automotive & Cockpit

  • 10" Touchscreen Dash Radio with Bluetooth® with iGo primo™ Navigation
  • Heated/Remote Exterior Mirrors with Integrated Side View Cameras
  • Back-Up Monitor
  • Cruise Control
  • Tilt Steering Wheel
  • Windshield Privacy Shade
  • Sun Visors
  • Map Lights
  • Emergency Engine Start Switch
  • Conversation Mirrors
  • Drink Holders
  • Stow-Away Coffee Table
  • Dash Workstation with 110-volt & 12-volt Outlets
  • Bird's Eye™ Window
  • Three-point Seat Belts for Driver and Passenger
  • Reclining/Swivel Leatherette Captain's Chairs
  • Power Drop Down Hide-Away Overhead Bunk with Bunk Ladder
  • 19.5" Tires with Stainless Steel Wheel Liners
  • Valve Stem Extenders on Rear Wheels

Interior

  • 84" Interior Ceiling Height
  • Residential Vinyl Flooring
  • Rubber Tread Entry Steps with Lighted Step Well & Utility Storage
  • Metal Entry Grab Handle
  • Fire Extinguisher
  • Smoke, LPG & Carbon Monoxide Detectors
  • Ceiling Ducted Air Conditioning System
  • Flat Panel Cabinet Doors with Nickel Finish Hardware
  • Full Extension Ball-Bearing Metal Drawer Guides
  • LED Lighting
  • Hard Vinyl Ceiling
  • Leatherette Sofa Bed
  • Leatherette "Theater Seats" with integrated footrests (33.1)
  • Dream Dinette® Booth with Cup Holders
  • Window Privacy Shades
  • 12-volt Attic Fan with Cover in Living Area
  • Passenger Seat Belts in Select Areas
  • Single Child Safety Tether in Dinette (Optional)

Kitchen

  • Double Door Refrigerator
  • 3-Burner Gas Cooktop/Oven with Bi-Fold Glass Cover
  • Microwave Oven
  • Laminate Countertops
  • Glass Tile Backsplash
  • Oversized Stainless Steel Single Bowl Sink & Single Handle Faucet w/Pull-Down Sprayer
  • Pantry (N/A 30.3)
  • Coat/Broom Closet with Hanging Hooks (27.2, 30.2)
  • Waste & Recycling Containers

Bedroom & Bathroom

  • Denver Mattress® Queen Size Bed (N/A 27.2, 32.1, 33.1)
  • Denver Mattress® King Size Bed (27.2, 32.1, 33.1)
  • Bedroom 12V Outlet for CPAP Machine
  • Designer Headboard, Bedspread & Pillow Shams
  • 12-volt Attic Fan with Cover in Bedroom
  • Bunk Beds w/Bunk Ladder (30.2)
  • Pull-Out Kibble Station™ with FDA Approved Pet Bowl Liner
  • Foot Flush Porcelain Toilet
  • Skylight in Shower
  • Shower with Curved Anti-Microbial Shower Curtain (N/A 30.2, 30.4)
  • Shower with Glass Door (30.2, 30.4)

Entertainment

  • 50" LED TV in Living Area (33.1)
  • 40" LED TV in Living Area (N/A 30.3)
  • Retractable 40" LED TV in Living Area (30.3)
  • 32" LED TV in Bedroom
  • Exterior 32" LED TV on Swivel Bracket, Soundbar & Radio
  • Blu-Ray Player in Living Area
  • Power Charging Center for Electronics
  • Cable TV Ready
  • Digital TV Antenna
  • Two (2) 15.5" LED TVs & DVD Player in Bunk Bed Area (30.2)
  • Exterior Kitchen with 2.6 cu. ft. Refrigerator, Sink & 1000-watt Inverter (29.3, 30.3)

Electrical & Plumbing

  • 30-amp Detachable Shoreline Power Cord
  • Onan® RV QG 4000 Gas Generator
  • 15,000 BTU Roof Air Conditioner
  • Battery Disconnect Switch
  • Second Auxiliary House Battery
  • Exterior LP Connection
  • Pre-wired for Solar Charging
  • 6-gallon DSI Gas/Electric Water Heater (N/A 32.1)
  • 10-gallon DSI Gas/Electric Water Heater (32.1)
  • 50-amp Detachable Shoreline Power Cord, Dual 13,500 BTU Roof Air Conditioners, and Onan® RV QG 5500 Gas Generator (Optional)
  • Water Heater Bypass System
  • Black Tank Flush System
  • Enclosed & Heated Holding Tanks (N/A 29.3, 30.2, 30.4, 32.1)
  • Enclosed Holding Tanks with Heat Pads (N/A 27.2, 30.3, 33.1)
  • Systems Control Center
  • Outside Shower
  • 360 Siphon® RV Holding Tank Vent Cap
  • 1" Fresh Water Tank Drain
  • WIFI Ranger / WIFI Extender

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

Thor Motor Coach (TMC) is the #1 Motorhome Brand in North America, producing nearly 1 out of every 4 motorhomes sold each year. Formed in 2010 as a strategic merger of Damon Motor Coach and Four Winds International, we build many of the world’s most recognized motorhomes. As an industry leader in introducing cutting­edge innovations, we offer a wide range of styles, sizes, floor plans and features – delivering coaches that fit every customer’s lifestyle and budget.

Our diverse product lineup includes many of the world’s most recognized gas­ and diesel­ powered Class A and Class C motorhomes, including the Four Winds, Challenger, Chateau, ACE and Tuscany models. By building a variety of unique styles, sizes and floor plans, we offer motorhomes that feel custom ­made – at a truly competitive price.

With so many unique models available, TMC motorhomes are priced to fit anyone’s budget – from families buying their first motorhome, to full­timers looking for a roaming “dream home.” No matter how you choose to spend your time or your money, there’s a TMC motorhome that fits your needs.
